M10 Terminal Post Pass-Through - Firewall Bulkhead
-
Trade
- Regular price $25.00
- Product Info
- Description
- Variants
- Specifications
- Shipping
Please select Black, Red or Set from drop down menu

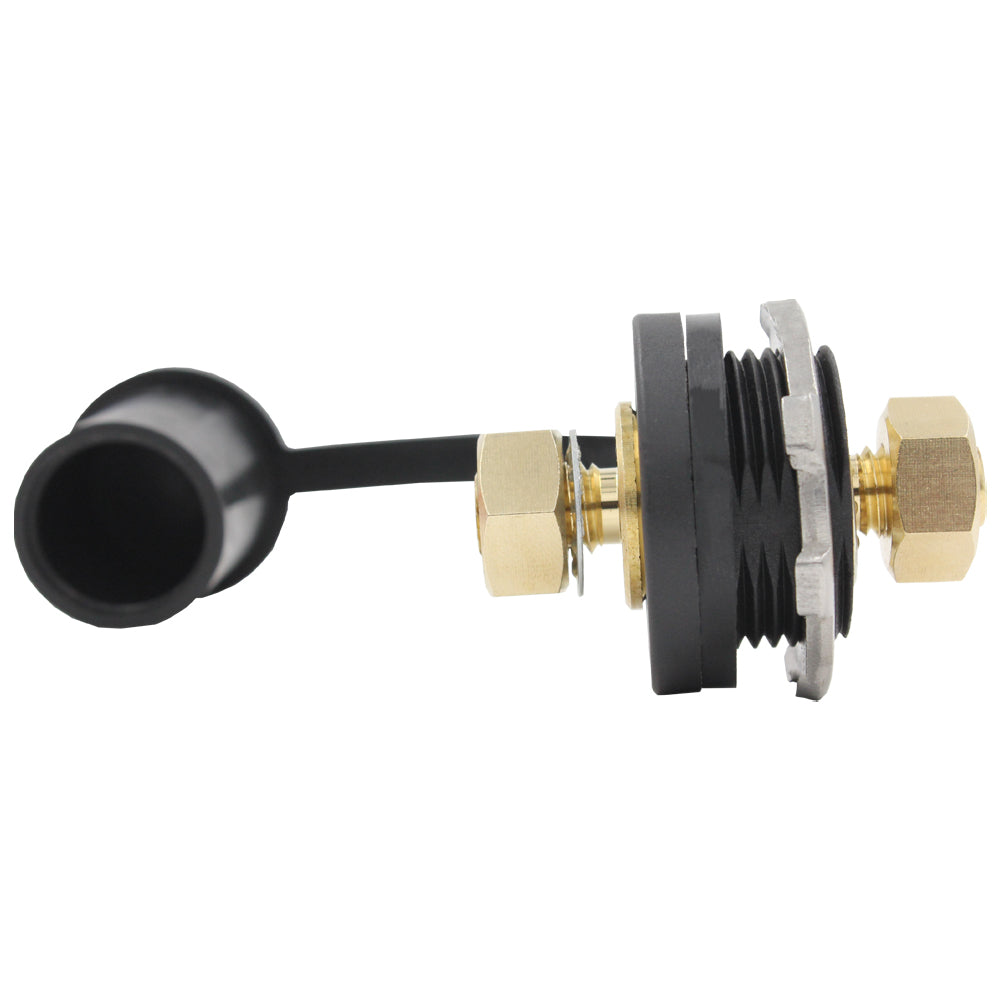

10mm stud both sides to suit M10 / 3/8" Terminals
Brass Studs and Terminal Connection, corrosion resistant
Durable, Insulated Polypropylene/Nylon base

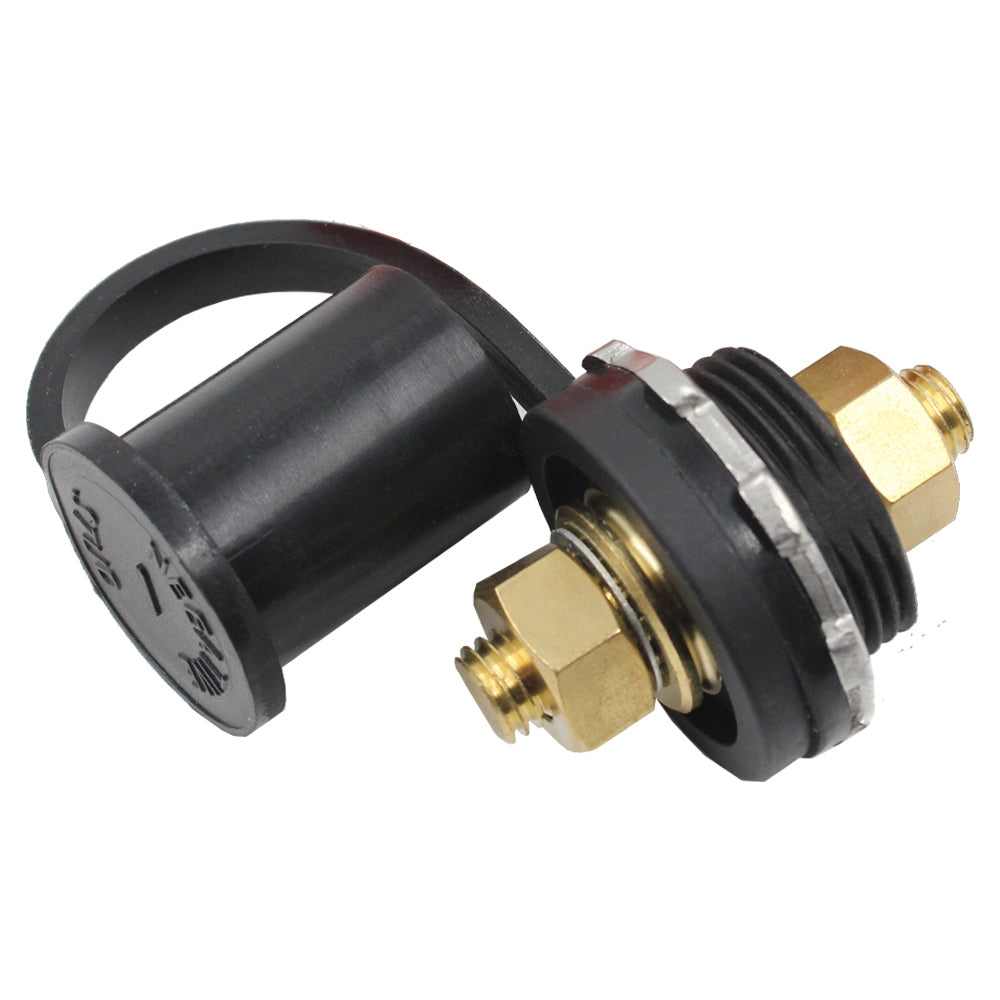

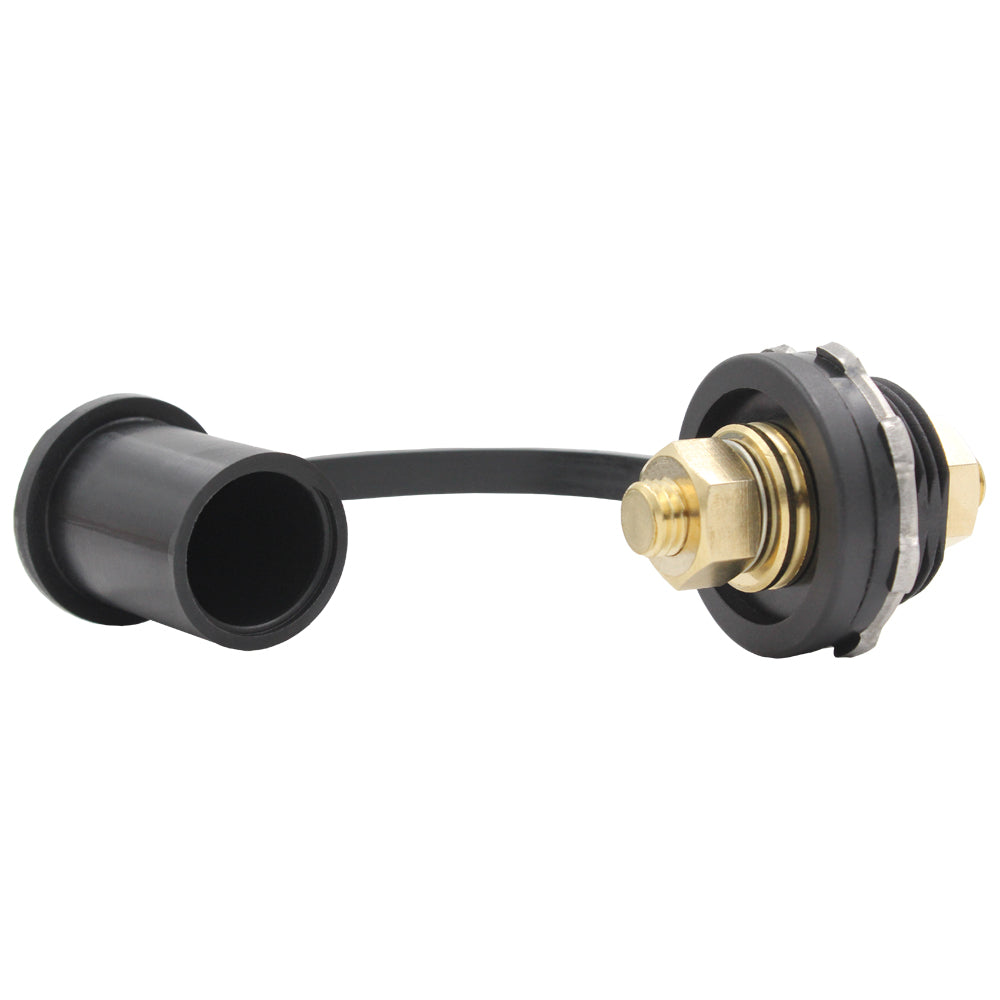

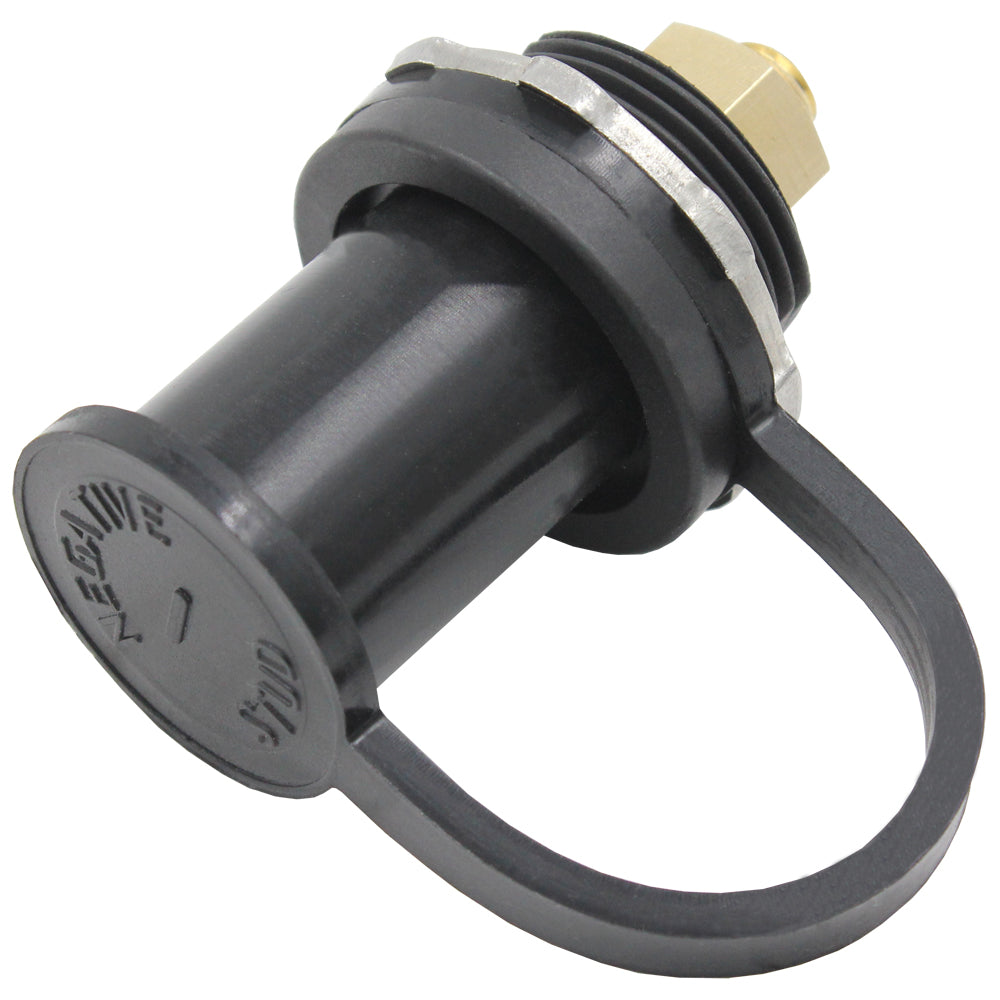

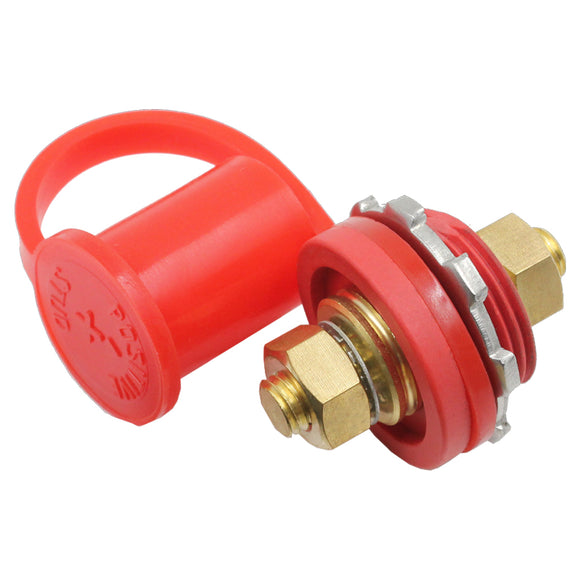

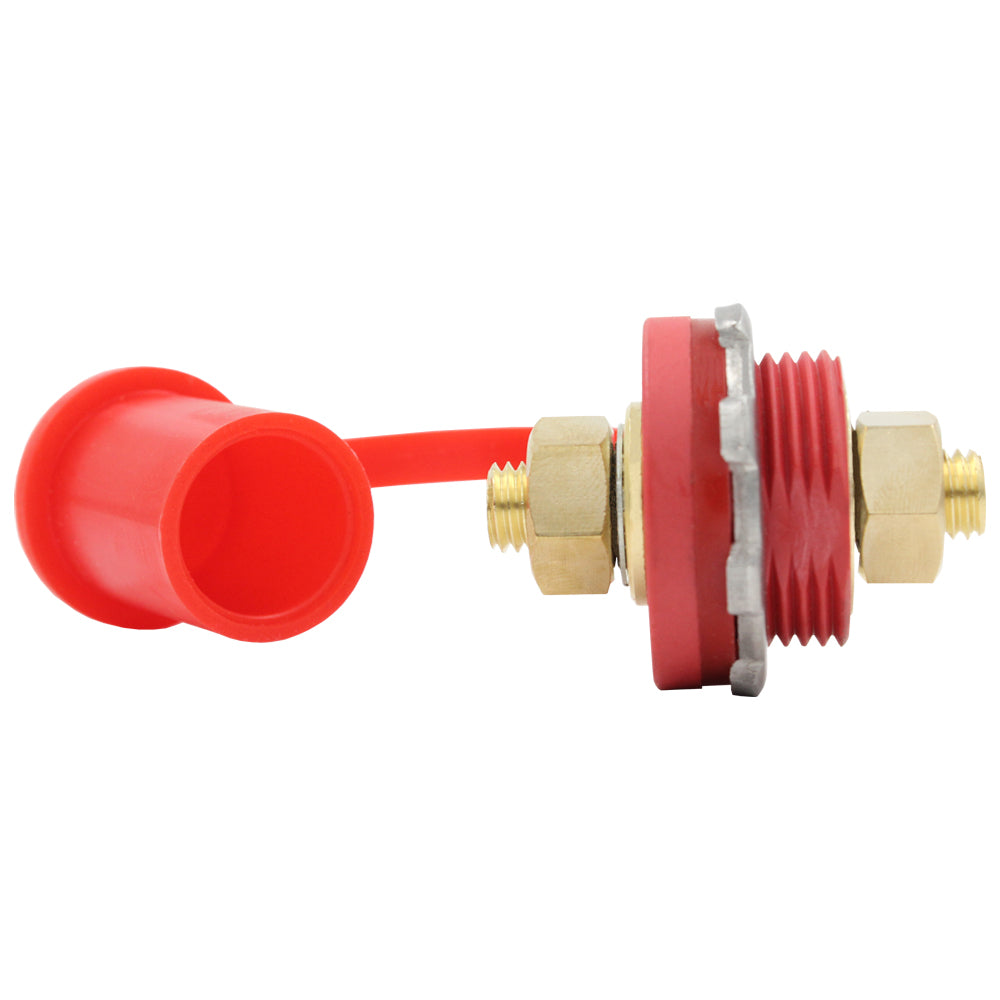

Rubber cap protection on one side with ring tether - see images
Includes spring washers for use in high vibration applications

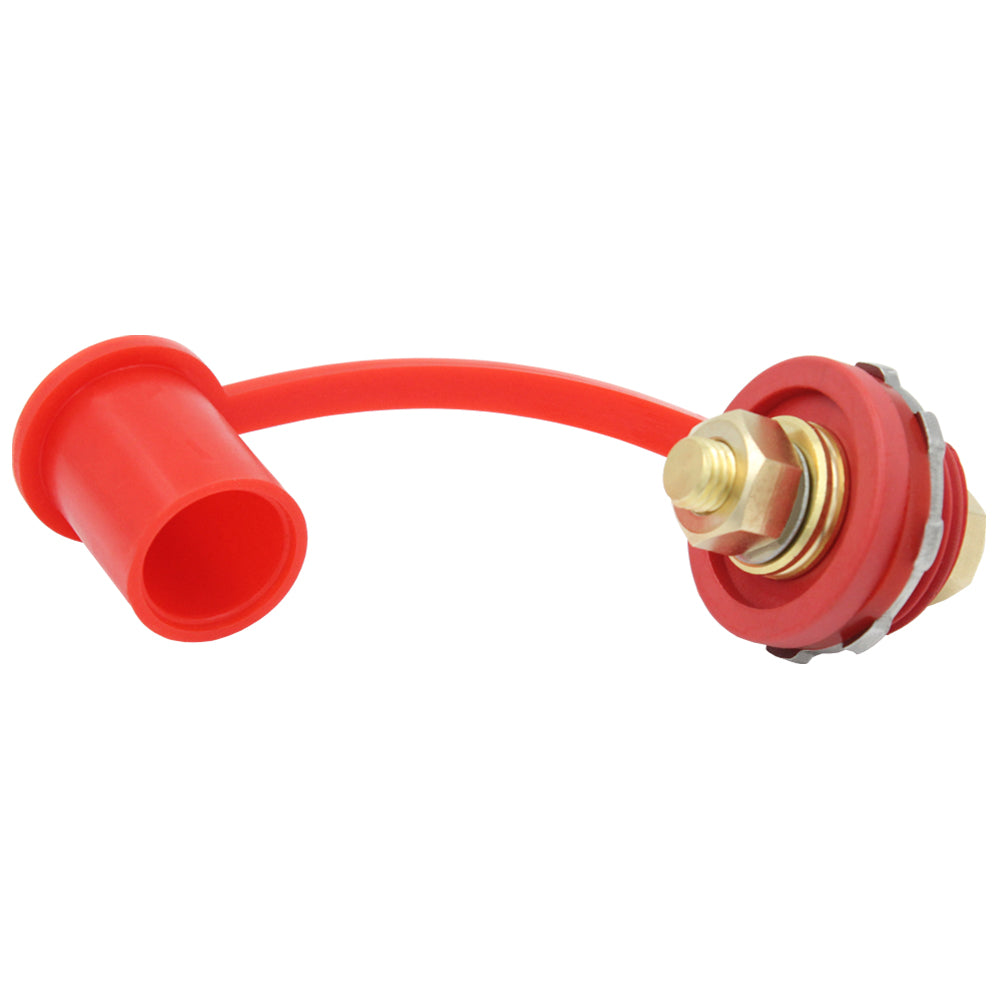

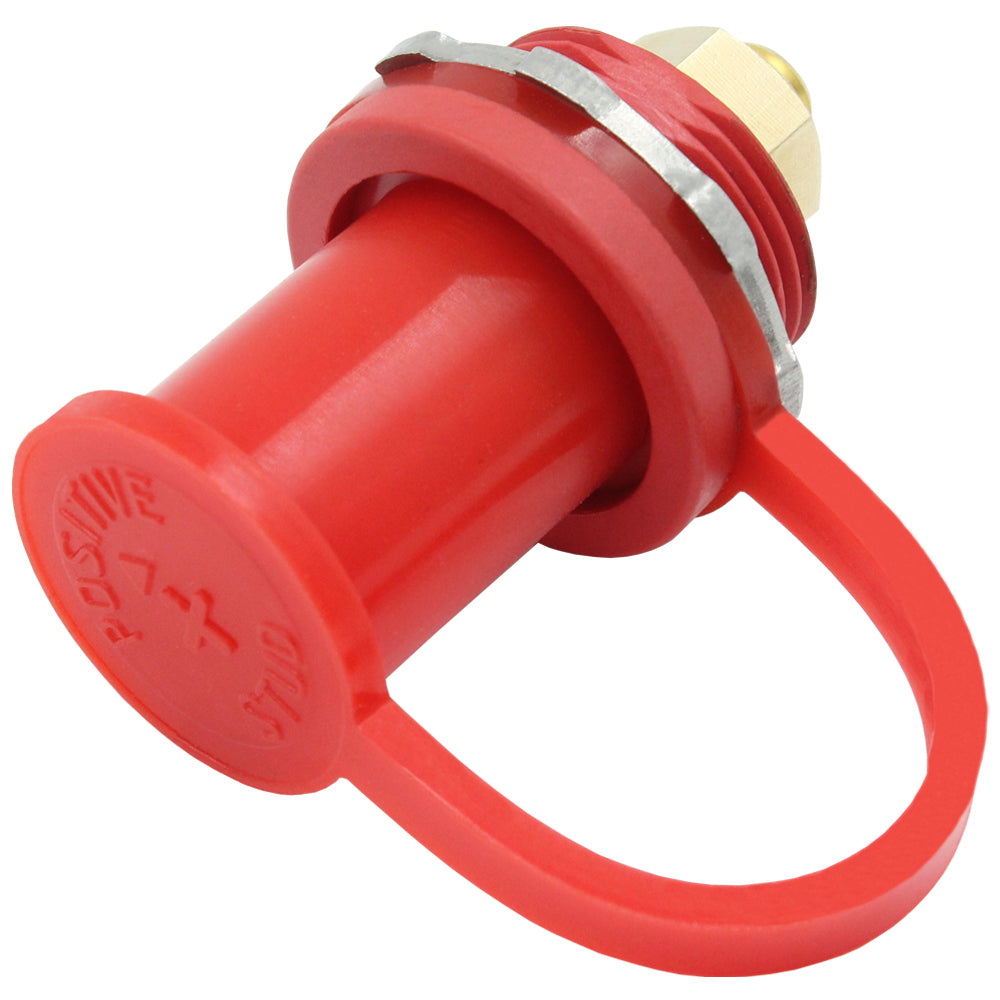

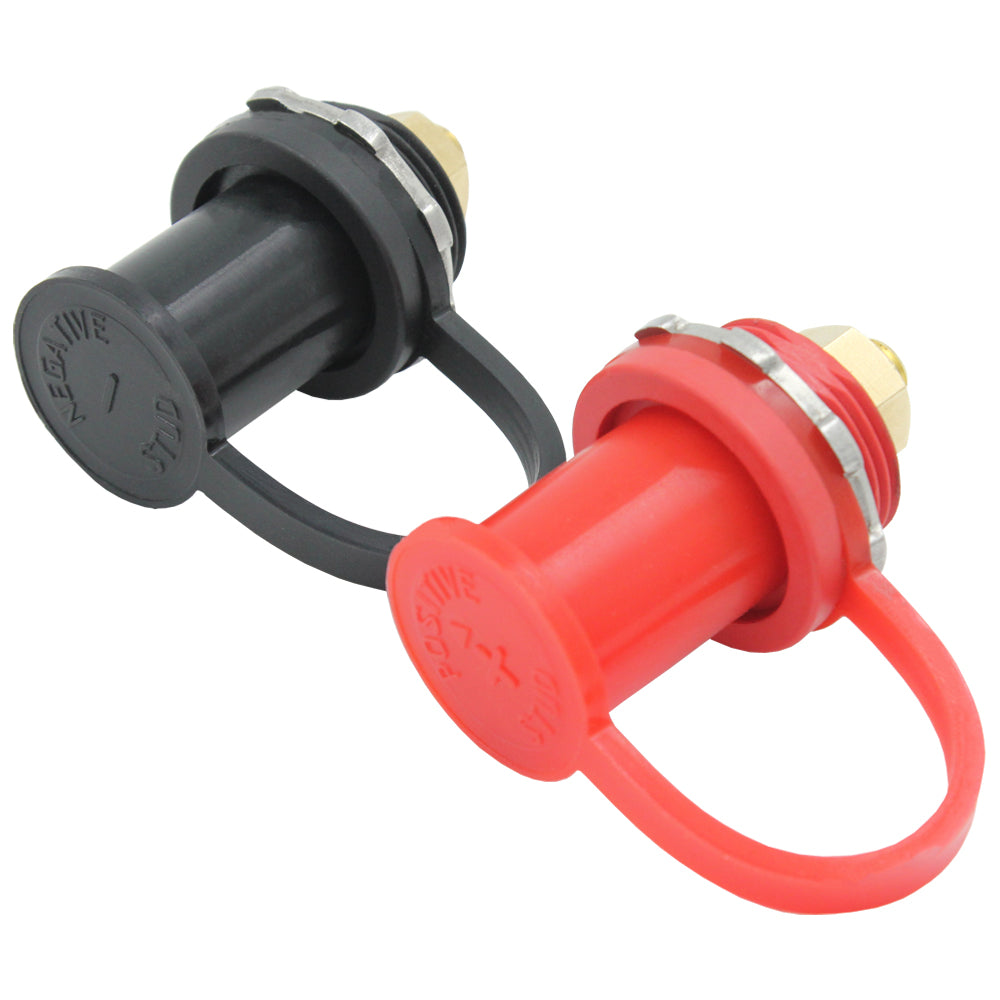

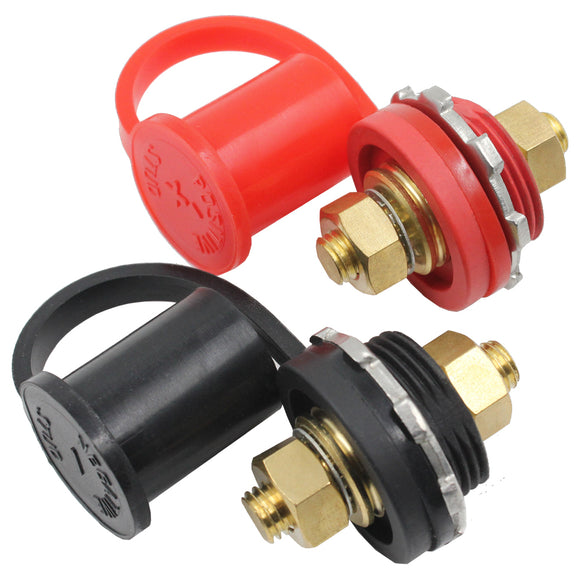

Select from Black (-), Red (+) or Set (Black + Red)
Included:
- 1 x Selected Unit or Set - Select from drop down menu
Our M10 Terminal Post Pass-Through Firewall Bulkhead is designed for robust and reliable electrical connections in all types of demanding environments. This high-quality terminal binding post is perfect for creating secure and efficient pass-through connections through firewalls, bulkheads, and other panels.
Assembled with an M10 thread, this bulkhead unit offers excellent conductivity and durability, ensuring long-lasting performance in 12v automotive, marine, and industrial applications. Its design allows for easy installation and secure mounting, providing a reliable solution for your electrical needs.
The bulkhead configuration of this terminal post enables a clean and organized routing of wires, making it ideal for integrating into panels or enclosures. Whether you're setting up a vehicle, boat, or industrial system, this unit ensures you can safely deliver dependable and efficient electrical connections through panels up to 8mm thick.
Please select Black, Red or Set from drop down menu

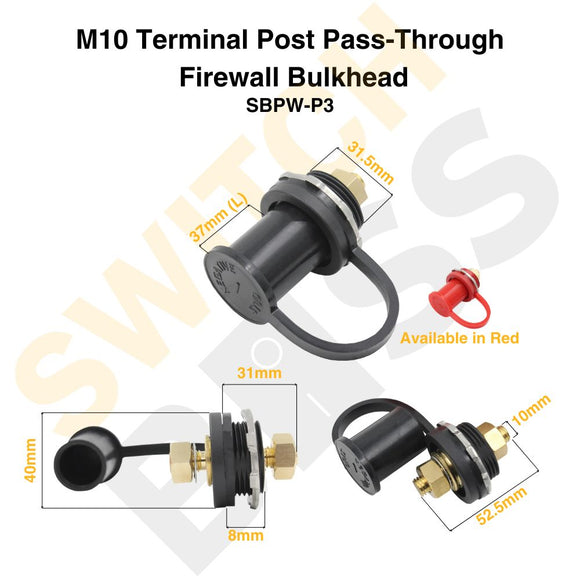

Max. Rating: 250A @ 12v
Max. Voltage Supply: 36vDC
Cut-Out Required: 31.5mm (Diameter)
Face Size: 40mm (Diameter)
Length (Stud to Stud): 52.5mm
Depth Required (from back of mounting face): 31mm
Terminals: 10mm Stud suit M10 / 3/8" lugs
Maximum Mounting Thickness: 8mm
Cap Size: 37mm (L)
