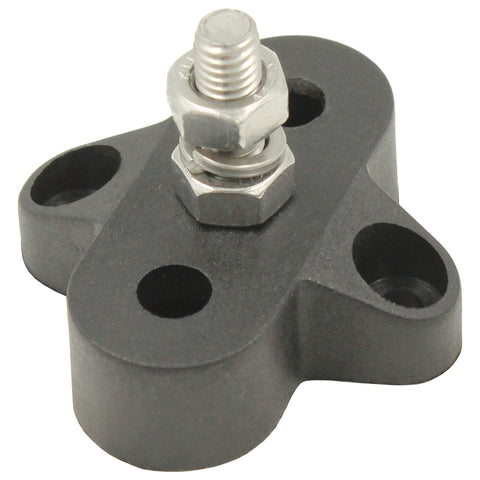

Single M6 Terminal Post/Bus Bar - Side Mount
-
Trade
- Regular price $12.00
- Product Info
- Description
- Variants
- Specifications
- Shipping
Please select Black, Red or Set from drop down menu
6mm stud to suit M6 Terminals
316 Stainless Steel, corrosion resistant
Insulated Polypropylene/Nylon base
Includes spring washer for use in high vibration applications
Select from Black (-), Red (+) or Set (Black + Red)
Included:
- 1 x Selected Unit or Set - Select from drop down menu
Each Unit includes:
- 1 x M6 Bolt/Stud
- 2 x Locking Nuts
- 1 x Spring Washer
- 2 x Mounting Screws
12v Bus Bar in Black (Negative) and Red (Positive) or commonly in a set.
Our Marine Bus Bar can be used in a wide variety of Automotive and Marine applications. The power distribution block can be used to keep the battery organised with just one wire attached to each terminal.
Having a battery busbar is a great way to prevent issues and troubleshoot problems as the leads be made more accessible for identifying and tracing faults.
This insulated busbar allows you to work in the area or store items without the fear or the battery terminals shorting on another item that may hit it.
An electrical busbar distribution block is an easy way to simplify your wiring and setup.
CLICK HERE to view our full range of Bus Bar's to create your ultimate set up.
Please select Black, Red or Set from drop down menu
Max. Rating: 80A @ 12v
Max. Voltage Supply: 48vDC
Body Dimensions: 43mm (W) x 45.5mm (L) x 33mm (H - mounting face to top of stud)
Terminals: 36mm Stud suit M6
Mounting Holes: 4mm (recessed)
Mounting Hole Centres: 30.5 (W)
Special Notes
For shipping purposes and to assist with initial mounting, this bolt/stud is removed from the housing prior to dispatch. Assembly is simple, but must be done prior to final mounting of unit base, as bolt/stud is fitted from underneath.
