Custom Assembled Rocker Switch - Blue LED

  • SKU:
    • Trade
    • Regular price $20.00
    GST included. Free Shipping Available Australia Wide


    Please select the Function above in the drop down menu

    Please select the Cover above in the drop down menu

    Assemble your own custom built rocker switch today!

    All units built to order, right here in our Brisbane warehouse!

    Dual Blue LEDs and Blue Switch Covers

    Printed Graphic and Text on Cover

    Simple and firm mounting for quick installation

    All Switches include a waterproof gasket seal for switch mounting face

    Create the switch you want today in only a few clicks!

    All units assembled and tested to order right here in our Tingalpa, QLD warehouse!

    Simply select your desired Function and Printed Cover from the respective drop down menus.

    It is that easy!

    Special Notes:

    • Please make your selection carefully as we cannot offer Returns on our custom assembled products

    Why choose a rocker switch?

    A rocker switch is the most versatile 12 v switch on the market. This is because it is rated for a 20A output so there relays are often not required. This enables simple installations compared to low output switches that often only output 3A.

    Dual LED Lighted 12v Switch with Custom Printed Graphic and Text on Cover

    Our 12v Rocker Switch can be used in many applications, with a variety of functions available including: On-Off Rocker Switch, On-Off-On Rocker Switch, 3 Way Momentary and Non-Momentary.

    Need a Rocker Light Switch or Winch Switch? This range has got you covered. With their versatility and heavy duty toggle switch function, our Rocker Switch ranges will have a switch for you.

    Want more – link multiple switches together to create your ultimate set up. Combine a Winch Isolator Switch with a Winch Switch for the cleanest look, and best functionality.

    Please select the Rocker Switch Function and Cover above in the drop down menus

    Brackets () indicate momentary rocker function - "(On)"

    Available switch specifications:

    Brackets () indicate momentary function
    2 Way Rocker Switch - 5 Pin On-Off, 5 Pin (On)-Off

    3 Way Rocker Switch - 7 Pin On-Off-On, 7 Pin (On)-Off-(On)

    SPST 5 Pin variants [On-Off & (On)-Off]:
    Lower LED is illuminated for the "Dash Light"
    Top LED illuminates when switched "On"
    Switch Up for On, Switch Down for Off

    DPDT 7 Pin variants [On-Off-On & (On)-Off-(On)]:
    Lower LED is illuminated when switched down and On
    Top LED illuminates when switched up and On
    Switch Up for On, Switch Down for On, Centre for Off

    *Momentary function denotes the switch function must be held for ON, released for OFF. A non-momentary switch will latch/hold in the ON position.

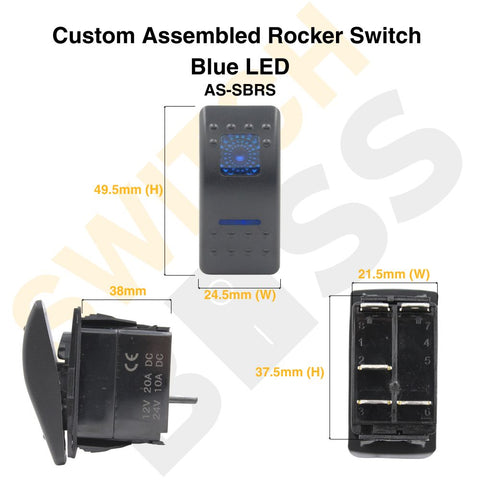

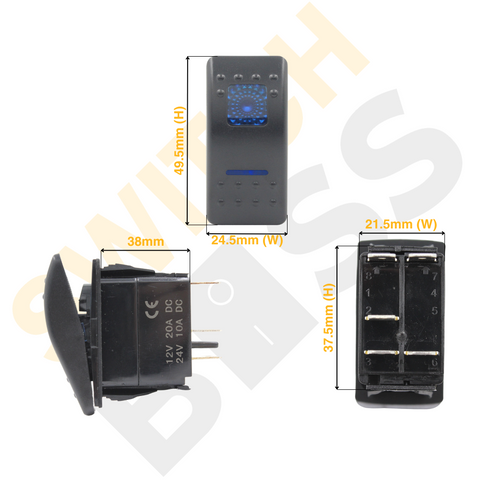

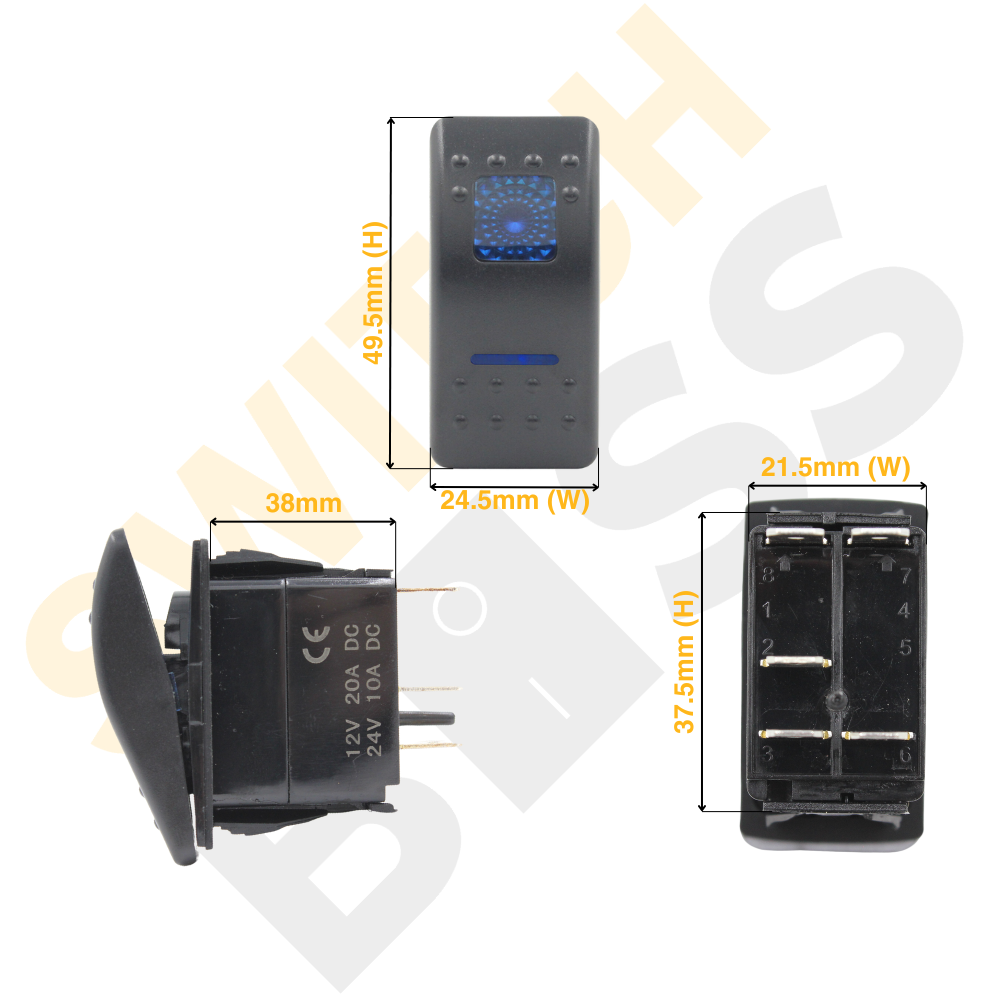

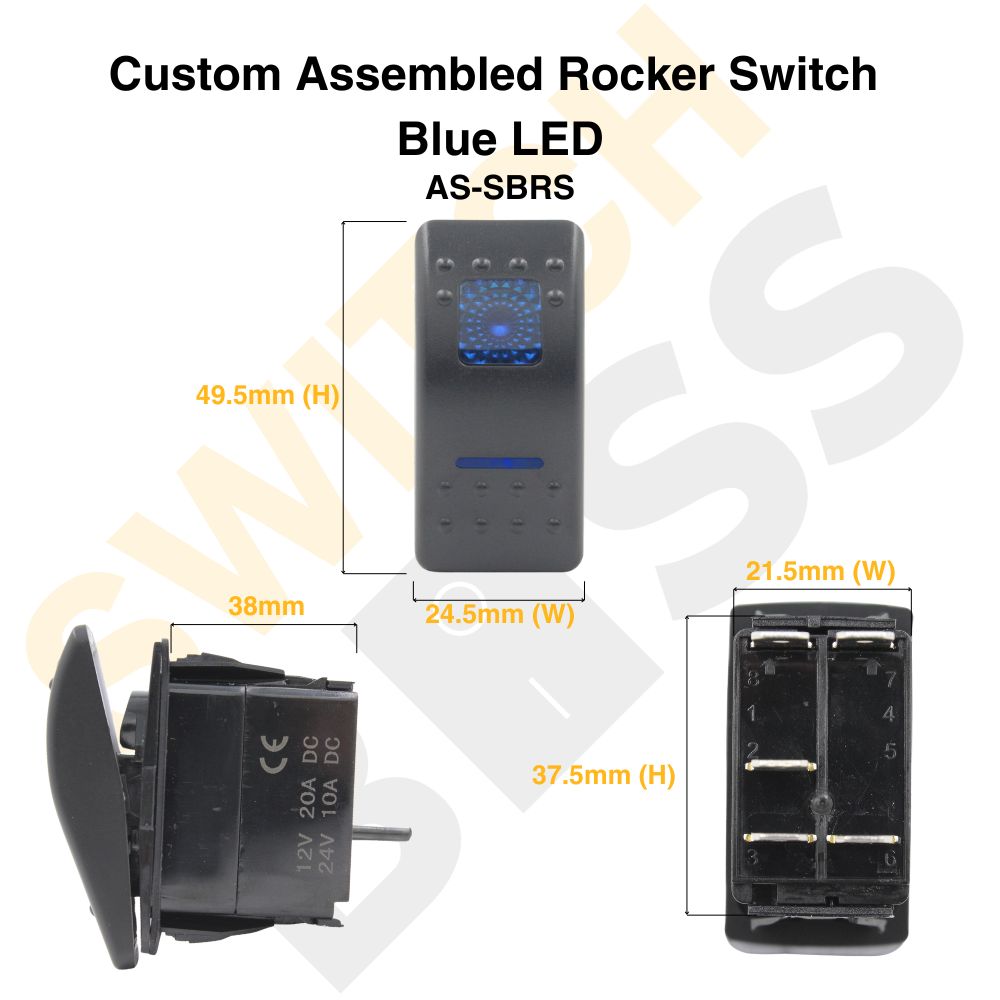

    Size Of Cut Out Required for Switch: 21.5mm (W) x 37.5mm (H)
    Switch Face Size: 24.5mm (W) x 49.5mm (H)
    Depth (from back of mounting face): 38mm
    Voltage: 12v-24v
    Maximum Rating: 10A @ 24V, 20A @ 12V
    IP Rating: IP66
    LED Colour: Blue
    Switch Materials: ABS + electrical components

    Switch Type: Varies depending on selection from drop down menu above. See description for more details


    Link to wiring instructions included with all orders.
