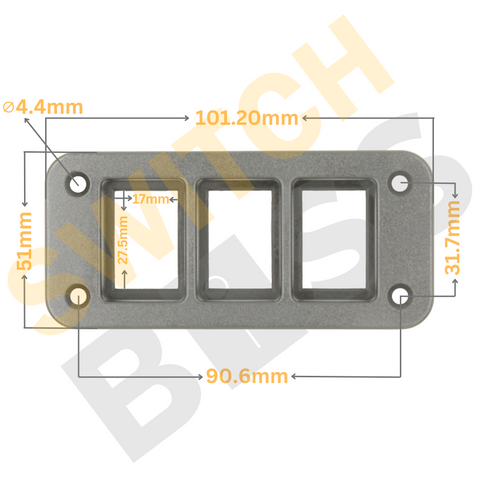

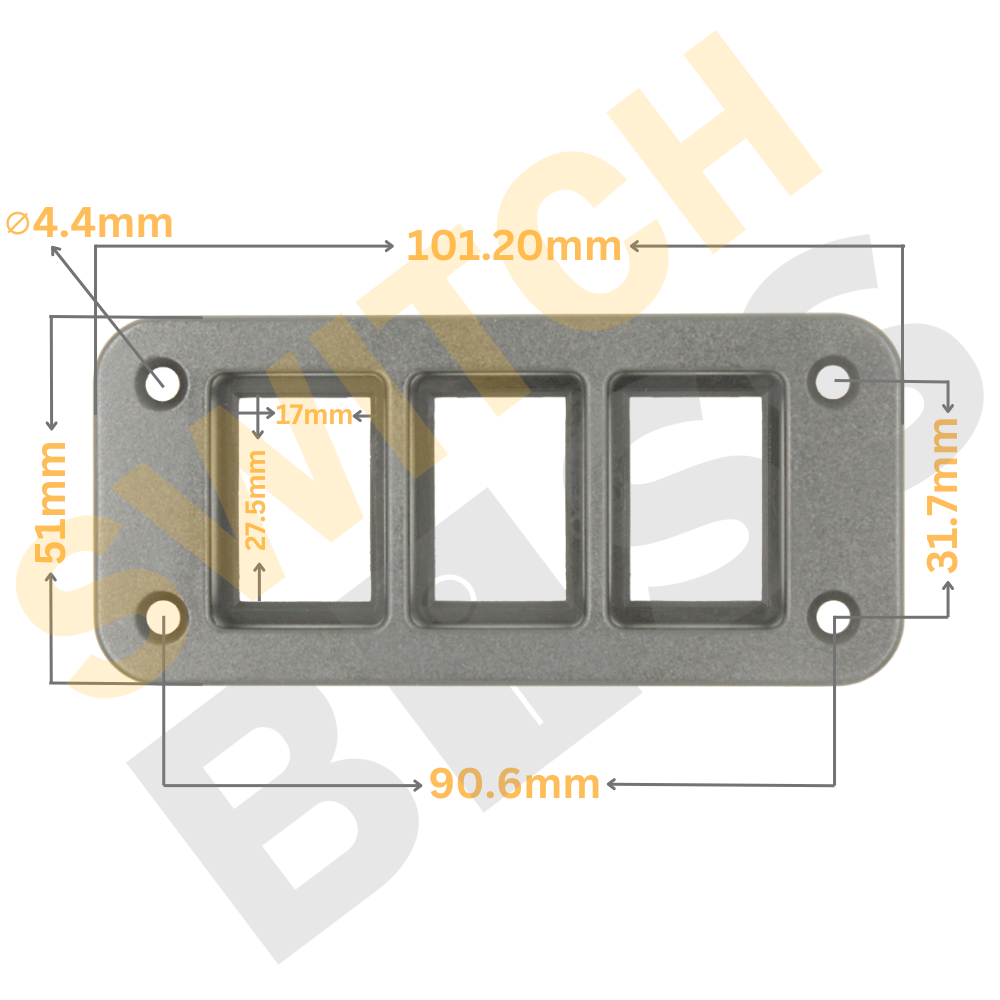

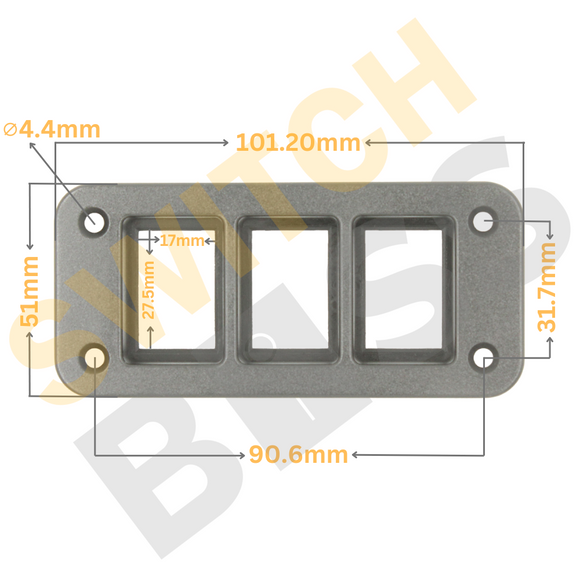

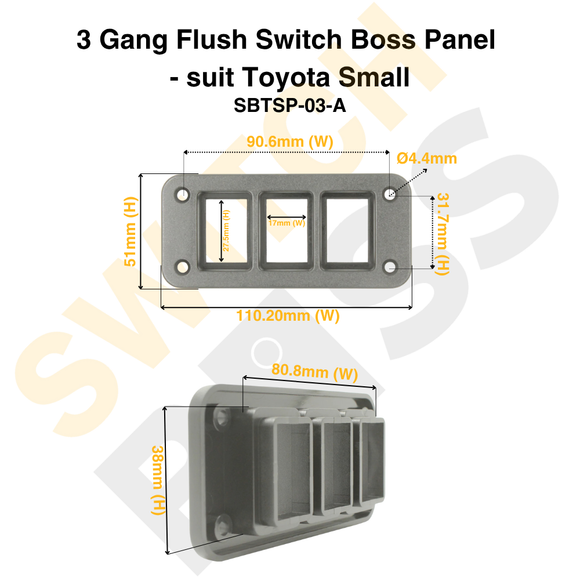

Specifications
Size of cut out for switches: 17mm (W) x 27.5mm (H)
Size of panel face: 110.20mm (W) x 51mm (H)
Mounting holes: 4.4mm (countersunk)
Mounting hole centres: 90.6mm (W) x 31.7mm (H)
Minimum cut-out required (for panel mounting): 80.8mm (W) x 38mm (H)
Description
The 3 Gang Switch Panel is a compact and versatile panel that allows for the management of multiple circuits or devices. It features three individual switch positions or slots, also known as gangs, which can accommodate three separate switches.
This switch panel is designed to provide a convenient and organized way to control the power flow to different electrical components or systems. Each gang can accommodate a Toyota Small switch, allowing for independent operation of three circuits or devices.
The 3 Gang Switch Panel is made from durable materials, ensuring reliability and safety in various environments. It can be mounted on a panel, dashboard, or any suitable surface, making it suitable for a wide range of applications. The panel is often used in automotive, marine, recreational vehicles (RVs), and other electrical systems where multiple switches need to be centralized and easily accessible. It offers a clean and streamlined appearance, enhancing the overall aesthetics of the installation.
Product Info
Black plastic gang panel/housing only
Compatible with all our Toyota Small Replacement push switches
Easy installation
Rust and corrosion proof
Designed as a tight fit for switch body for no vibration, rattling or damage
Compatible Switches for This Panel:
✔ White LED Switch
✔ Red LED Switch
✔ Green LED Switch
✔ Blue LED Switch
- 1 x 3 Gang flush panel
