(On)-Off-(On) 3 Way Toggle Switch - Momentary

  • SKU:
    • Trade
    • Regular price $8.00
    GST included. Free Shipping Available Australia Wide


    Please select Pole option from drop down menu above

    (On)-Off-(On) Toggle Switch

    12v heavy duty (On)-Off-(On) momentary 3 way toggle switch

    Single and Double Pole available - See Specifications

    Brackets () indicate momentary function

    (On)-Off-(On) SPDT, (On)-Off-(On) DPDT

    Easy installation, suits standard automotive terminals

    Match this toggle switch with one of our toggle panels


    Included:

    • 1 x (On)-Off-(On) Toggle Switch

    The (On)-Off-(On) 3-Way Toggle Switch is a versatile switch used for controlling power flow in electrical circuits. It features a toggle mechanism with three positions: On, Off, and On.

    This toggle switch allows you to choose between two different circuit connections or combinations of circuits, depending on the position of the toggle. When in the "On" position on either side, it connects one set of terminals, and when in the middle "Off" position, it disconnects both sets of terminals.

    The (On)-Off-(On) 3-Way Toggle Switch is designed for easy installation and use. It can be mounted on panels, control boxes, or other surfaces with standard switch cutouts.

    This switch is commonly used in various applications, including automotive, marine, industrial, and home electrical systems. It provides a reliable and convenient solution for selecting between different modes or functions, allowing you to control the flow of electricity to different circuits or devices.

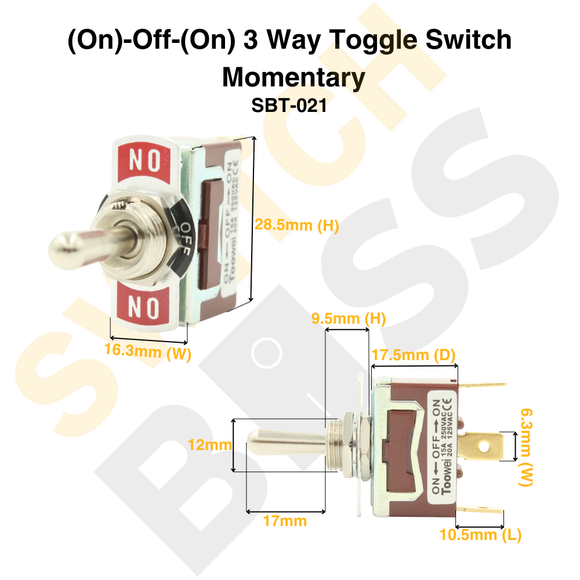

    Single Pole - SPDT 3 Pin (On)-Off-(On)

    Maximum Rating: 20A@12v, 15A@24v
    Mounting Hole Diameter: 12mm
    Body Dimensions: 16.3mm (W) x 28.5mm (H) x 17.5mm (D)
    Terminals: 6.3mm (W) x 10.5mm (L)
    Threaded Shaft: M12x1.0mm
    Threaded Shaft Dimensions: 12mm Diameter x 9.5mm (H)
    Toggle Length: 17mm (from top of thread)

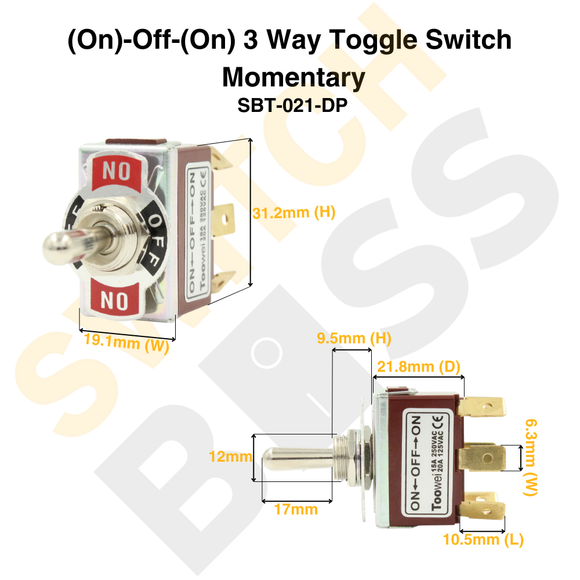

    Double Pole - DPDT 6 Pin (On)-Off-(On)

    Maximum Rating: 20A@12v, 15A@24v
    Mounting Hole Diameter: 12mm
    Body Dimensions: 19.1mm (W) x 31.2mm (H) x 21.8mm (D)
    Terminals: 6.3mm (W) x 10.5mm (L)
    Threaded Shaft: M12x1.0mm
    Threaded Shaft Dimensions: 12mm Diameter x 9.5mm (H)
    Toggle Length: 17mm (from top of thread)

    Link to wiring instructions included with all orders.

    CLICK HERE to view our Wiring Instructions page.
