12mm Latching Push Button Switch with LED (Pre-Wired)
-
Trade
- Regular price $12.00
- Description
- Description
- Specifications
- Wiring
- Shipping
Product Info
Please select Body Colour from drop down menu
Please select LED Colour from drop down menu
T-A06 Series Latching On-Off Button/Switch with LED - Pre-Wired
On-Off Momentary SPST switch - Ring LED illumination
Blue or Red LED Available - each unit has only 1 LED colour
LED power separate to switching power allowing to multiple wiring setups
Push In for On, Push In again for Out and Off - Latching Function
High Button design allows for easy operation in a small/compact unit
Pre-wired 20AWG - 120mm length approx.
Easy installation, 12mm panel mount
Lock nut, O-ring included
Match this switch with one of our toggle panels
Includes:
- 1 x T-A06 Series 12mm On-Off Push Button Switch - Pre-Wired
- 1 x Lock Nut
- 1 x O-Ring
Our 12mm Aluminium On-Off Push Button Switch range is an ideal component commonly used in a variety of applications, such as automotive, PC, PC simulation, or DIY projects.
The switch features a round, 7.5mm diameter button that can be pressed to activate or deactivate an electrical circuit where latching function is required. It has a sleek and durable aluminium body that is resistant to corrosion and wear. The switch is designed to be mounted through a 12mm hole (panel mount), and it can be secured using a locking nut that is included.
The LED illumination, available in both Blue and Red, offers great visibility and a stylish look. The LED power supply is separate to the switching connections of the switch, allowing for multiple LED illumination options. The LED can either be powered at all times, connected to dash/nights lights or wired into the switch output (+) to allow for LED illumination only when the switch is On.
The unit operates as an On-Off Normally Open/NO design latching type switch, which means that it has two states: On when the button is pressed to supply power and complete the circuit, and Off when the button is pressed again to disconnect the circuit. It is rated for a maximum voltage and current of 12V DC/5A.
Maximum Rating: 3A@12v

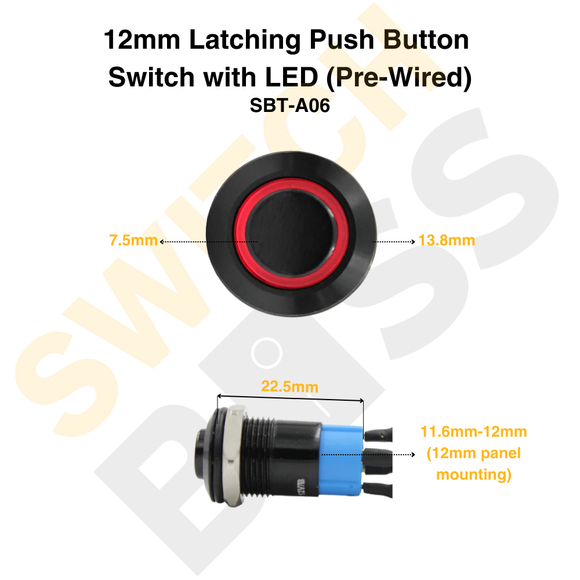

Mounting Hole Diameter: 11.6mm-12mm (12mm panel mounting)
Button Size Diameter: 7.5mm
Face Size Diameter: 13.8mm
Wiring: 20AWG, 120mm length (approx.)
Depth (from back of mounting face, excluding terminals/wire): 22.5mm
IP65 Rating
4 Pin Wiring
These units are designed and assembled with LED illumination power separate from the switching Power In/Power Out switch circuit. LED positive power is supplied separate via Red Wire, with the LED ground/earth via the Black Wire.
LED will illuminate at all times power is supplied to Red Wire. For LED illumination only when the switch is "On", connect Red Wire to switch output.
Link to wiring instructions included with all orders.
CLICK HERE to view our Wiring Instructions page.
