Laser Etched Horizontal Rocker Switch - Blue LED - 66 Styles

  • SKU:
    • Trade
    • Regular price $24.00
    GST included. Free Shipping Available Australia Wide


    Please select the Rocker Switch Style above in the drop down menu

    Horizontal Orientated Rocker Switches

    Laser Etched Switch Covers - for the cleanest and more durable look

    Dual Blue LED

    Simple and firm mounting for quick installation

    All switches include a waterproof gasket seal for switch mounting face

    The same units as our vertically orientated Rocker Switch, with a non-symmetrical cover (left/right) - See Images

    Why choose a rocker switch?

    A rocker switch is the most versatile 12 v switch on the market. This is because it is rated for a 20A output so there relays are often not required. This enables simple installations compared to low output switches that often only output 3A.

    Dual LED Lighted 12v Switch with Custom Etched Graphic and Text on Cover.

    Laser etching is the most durable, and versatile option for switch labelling and marking. Laser etching offers symbols and text that won't wear or fade, yet still allows great backlighting with LED illumination.

    Our 12v Rocker Switch can be used in many applications, with a variety of functions available including: On-Off Rocker Switch, On-Off-On Rocker Switch, 3 Way Momentary and Non-Momentary.

    Need a Rocker Light Switch or Winch Switch? This range has got you covered. With their versatility and heavy duty toggle switch function, our Rocker Switch ranges will have a switch for you.

    Want more – link multiple switches together to create your ultimate set up. Combine a Winch Isolator Switch with a Winch Switch for the cleanest look, and best functionality.

    Please select the Rocker Switch Style above in the drop down menu

    Can't find the switch you are looking for? Check out our full Rocker Switch range - click here!

    Or want that clean, stealth look? Check out our Blank Cover range - click here!

    Available switch specifications:

    Brackets () indicate momentary function

    Blue LED Units:

    2 Way Rocker Switch - 5 Pin On-Off, 5 Pin (On)-Off
    3 Way Rocker Switch - 7 Pin On-Off-On, (On)-Off-(On)

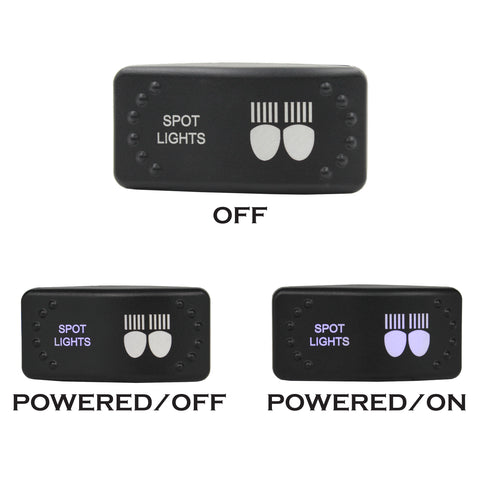

    SPST 5 Pin variants [On-Off & (On)-Off]:
    Left LED (Text) is illuminated for the "Dash Light"
    Right LED (Symbol) illuminates when switched "On"
    Switch Right for On, Switch Left for Off

    Hold for (On) Functions - Momentary

    DPDT 7 Pin variants [On-Off-On & (On)-Off-(On)]:
    Left LED is illuminated when switched Left and On
    Right LED illuminates when switched Right and On
    Switch Left for On, Switch Right for On, Centre for Off

    Hold for (On) Functions - Momentary

    All Switches are standard On-Off SPST, except the following:
    Brackets () indicate momentary rocker function - "(On)"

    *Arrows Left/Right* On-Off-On: On-Off-On 3 way non-momentary
    *Arrows Up/Down* On-Off-On:
    On-Off-On 3 way non-momentary

    *Arrows Left/Right* (On)-Off-(On): (On)-Off-(On) 3 way momentary
    *Arrows Up/Down* (On)-Off-(On): (On)-Off-(On) 3 way momentary
    Anchor Up/Anchor Down: (On)-Off-(On) 3 way momentary
    Battery Link (Momentary): (On)-Off momentary
    2 Lines (On)-Off-(On): (On)-Off-(On) 3 way momentary
    2 Lines On-Off-On: On-Off-On 3 way non-momentary
    Engine Start (Momentary): (On)-Off momentary
    Horn (Momentary): (On)-Off momentary
    Nav/Anchor On-Off-On: On-Off-On 3 way non-momentary
    Open/Close: (On)-Off-(On) 3 way momentary
    Winch In/Winch Out (Text): (On)-Off-(On) 3 way momentary
    Winch In/Winch Out (Arrows): (On)-Off-(On) 3 way momentary
    White/Amber On-Off-On: On-Off-On 3 way non-momentary

    Size Of Cut Out Required for Switch: 37.5mm (W) x 21.5mm (H)
    Switch Face Size: 49.5mm (W) x 24.5mm (H)
    Depth (from back of mounting face): 38mm
    Voltage: 12v-24v
    Maximum Rating: 10A @ 24V, 20A @ 12V
    IP Rating: IP66
    LED Colour: Blue
    Switch Materials: ABS + electrical components
    Switch Type: Varies depending on selection from drop down menu above. See description for more details

    Link to wiring instructions included with all orders.

    CLICK HERE to view our Wiring Instructions page.
