Wiring
Link to wiring instructions included with all orders.
CLICK HERE to view our Wiring Instructions page.
Specifications
Panel material: Aluminium
Size of panel: 154mm (W) x 110mm (H)
Voltage: 12v-24v
Cigarette socket output: 5v
Dual USB outlet: 4.2A (2.1A + 2.1A)
Maximum current rating: 10A @ 24V or 20A @ 12V
Mounting holes: 4mm countersunk
Mounting hole centres: 138mm (W) x 94mm (H)
Depth Required (for wiring): 75mm
CLICK HERE to view the Sizing Guide.
Please note:
- As these items are pre-assembled, pre-wired and tested prior to dispatch, we cannot warrant or guarantee any modification, disassembly or re-wiring of the panel.
- Switch terminals have small locking hole as standard for female spade terminal. Ensure this is unclipped if terminal removal is required.
Description
The 5 Rocker Switch + Dual USB + Volt Display + Cigarette Socket Panel is an electrical accessory designed for use in vehicles. It is a compact and versatile panel that provides multiple functions in one convenient package.
The panel features five rocker switches that can be used to control various electrical circuits, such as turning on and off auxiliary lights or other accessories. The switches have a durable construction and are rated for a maximum current of 20A.
In addition to the rocker switches, the panel also has a dual USB port that allows for charging of USB-powered devices, with a combined output of 4.2A. A voltage display is also included on the panel, which shows the voltage of the vehicle's electrical system. This can be useful for monitoring the health of the battery and the overall electrical system.
The panel also has a cigarette socket, providing a convenient way to power devices that require a cigarette lighter socket, such as a phone charger or an air compressor.
The panel is designed to be installed in the dashboard or console of a vehicle, and its compact size allows it to blend seamlessly into the interior. Its durable construction ensures that it can withstand frequent use and exposure to the elements.
The Switch Boss 5 Rocker Switch + Dual USB + Volt Display + Cigarette Socket Panel is a versatile and convenient accessory that provides multiple functions in one compact package. It is suitable for use in a wide range of vehicles, from cars to boats and off-road vehicles.
Product Info

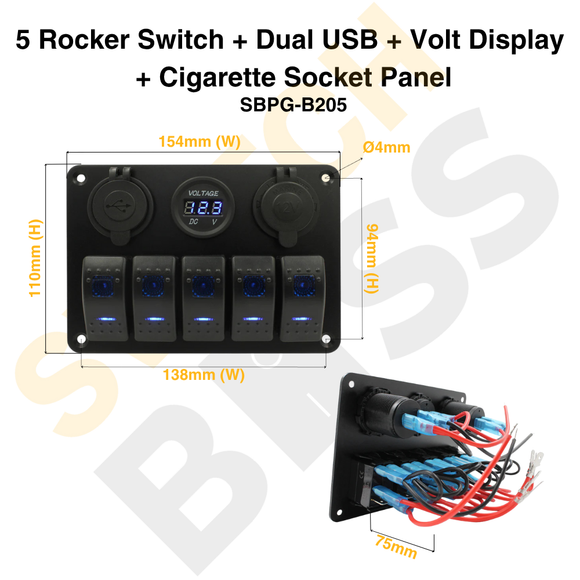

5 Rocker Switch + Dual USB + Volt Display + Cigarette Socket Panel
Pre-assembled and pre-wired!
All dash light/lower LED positive terminals pre-wired across switches, with only a single positive connection required
All LED negative terminals pre-wired across switches, with only a single negative connection required
Separate power/positive feed for main power in to each switch, to allow for separate circuit/fused power supply to each switch. Pre-crimped male spade terminal fitted
Pre-wired 12v round accessories with only a single positive/negative connection required
Switches have blue LEDs and BLANK blue switch covers
Lower LED is illuminated for the "dash light"
Top LED illuminates when switched "ON"
Switches are standard On-Off SPST
Switches in panel are fitted with a rubber gasket seal
For Best Value customization, please see our Rocker Switch Covers.
Includes:
- 1 x Pre-assembled and pre-wired panel
- 4 x Rocker switches
- 1 x Dual USB
- 1 x Volt display
- 1 x Cigarette socket
- 1 x Sticker/label pack
- 4 x Mounting screws
